Quick Start

Sections are the building blocks of all pages in Spree Storefront. There are two types of sections:

Layout sections

  • eg. Header, Footer
  • Present on all pages

Content sections

  • eg. Hero, Featured Products
  • Present on specific pages
  • can be managed via the Page Builder
Let’s take a look at the page structure of Spree Storefront: As you can see, the page is divided into sections. Each section is a component that is used to create the page. Most sections are containers that consist of multiple blocks which you can manage via the Page Builder (add/customize/remove/change their order). Each section consists of:
FileDescriptionExample
ActiveRecord modelDefines the section’s preferencesSpree::PageSections::ImageWithText
Storefront viewRenders the section in the storefront - each theme can have its own viewimage_with_text.html.erb
Admin page builder formConfigures the section in the admin panelimage_with_text/_form.html.erb

Layout Sections

We have two types of layout sections - Header and Footer. As the name suggests, they are rendered at the top and bottom of the page respectively. Between them, we have a main content area that is used to render the page sections.

Header sections

Announcement Bar

A simple announcement bar section that displays a message to the users.

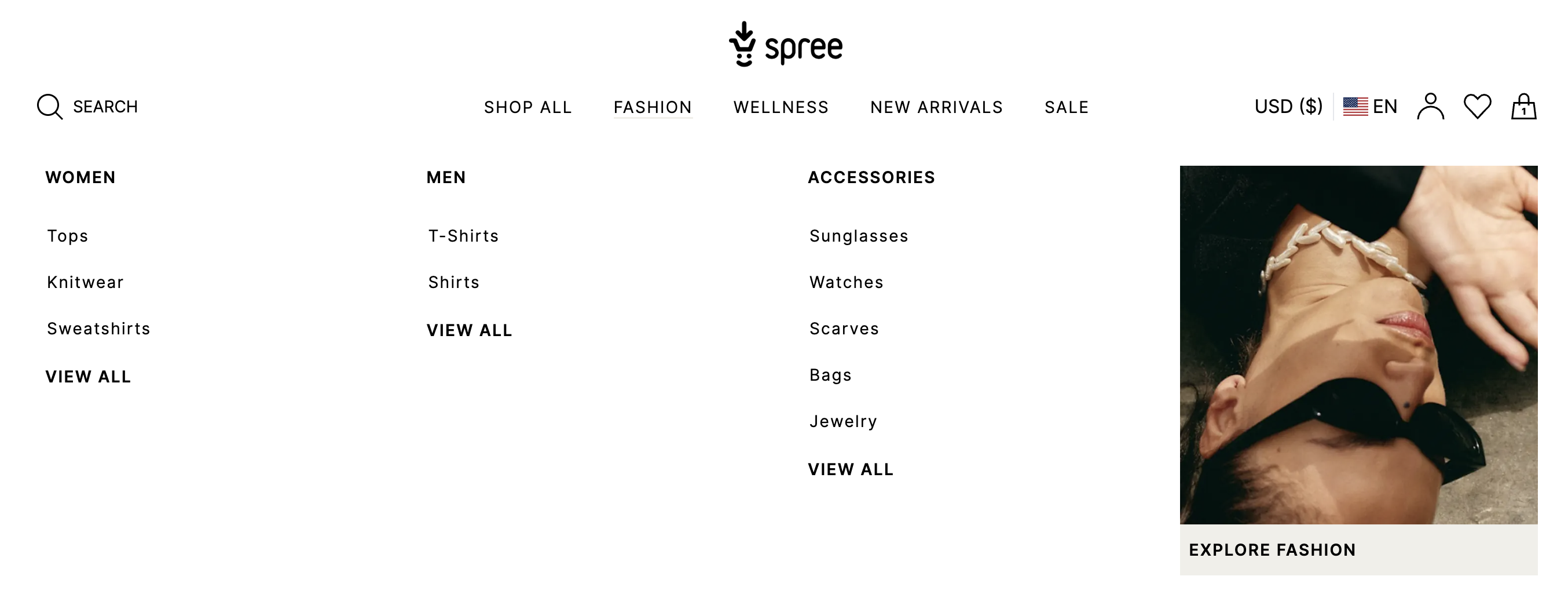

Header is one of the most important sections in the storefront. It is used to display the store’s logo, navigation menu, search bar, cart icon, and user menu. Header can have a simple one-level navigation menu or a more complex multi-level menu (aka mega menu)

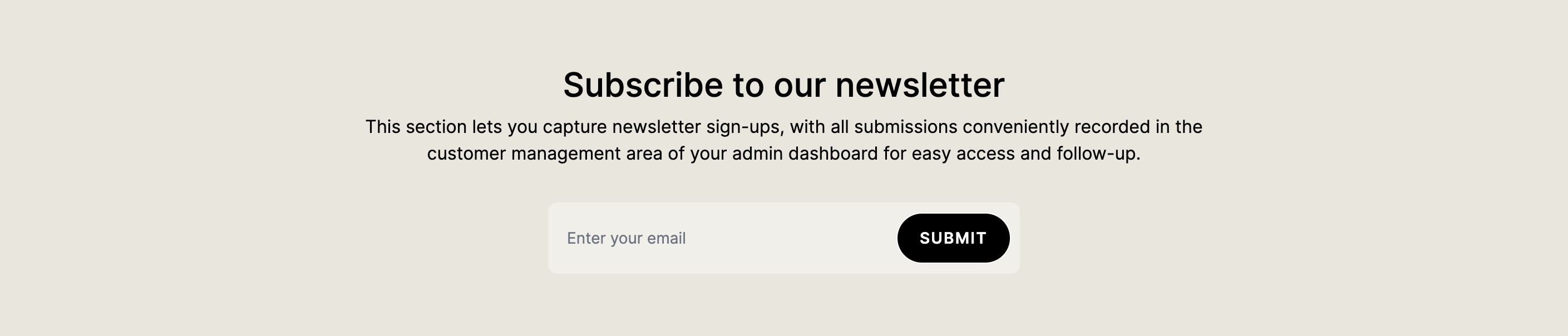

Newsletter

A newsletter section that allows users to subscribe to the store’s newsletter. If you connected your store to a newsletter provider (eg. Klaviyo, Mailchimp, etc.), you can use this section to collect emails and send them to your provider (Only in Spree 5.1+).

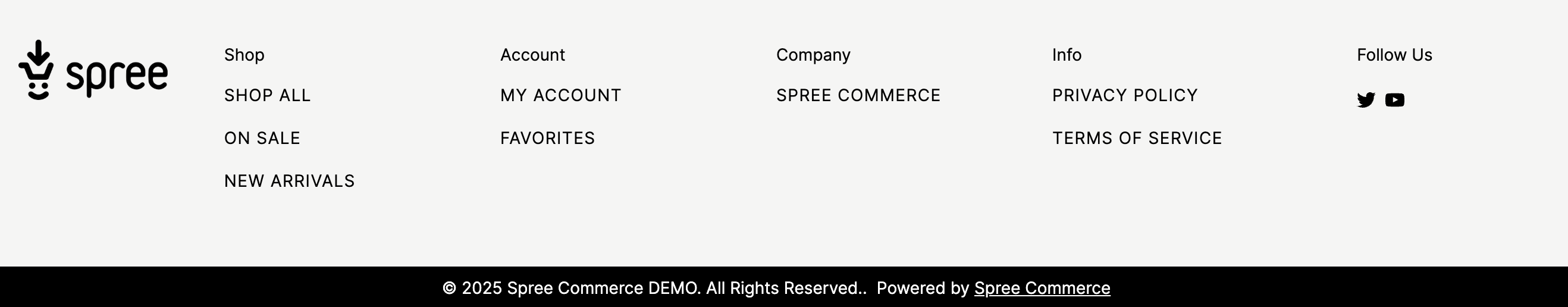

Footer is a section that is used to display the store’s footer. It is typically used to display the store’s logo, copyright information, store policies, and other important links.

Content Sections

Documentation on content sections is coming soon

Architecture

Let’s dive into the details of how sections work.

Active Record Model

Each section’s model inherit from Spree::PageSection abstract model class.

Associations

Each sections has many blocks and links. You can call them via section.blocks and section.links respectively. Section belongs to a polymorphic parent model called pageable which can be either Spree::Page (content sections) or Spree::Theme (layout sections). You can access section’s theme by calling section.theme.

Preferences

Each section has set of default preferences
NameDescriptionDefault Value
text_colorColor of text in the sectionnil - uses theme’s text color
background_colorBackground color of the sectionnil - uses theme’s background color
border_colorColor of section bordersnil - uses theme’s border color
top_paddingPadding space above section content (in pixels)40
bottom_paddingPadding space below section content (in pixels)40
top_border_widthWidth of top border (in pixels)1
bottom_border_widthWidth of bottom border (in pixels)0
Particular sections can introduce their own preferences. For example, Spree::PageSections::ImageWithText has desktop_image_alignment and vertical_alignment preferences.

Creating a New Section

This guide walks you through creating a custom section for your Spree storefront. We’ll create a “Testimonials” section that displays customer reviews.

Step 1: Create the Model

Create your section model that inherits from Spree::PageSection. Place it in app/models/spree/page_sections/:
app/models/spree/page_sections/testimonials.rb
module Spree
  module PageSections
    class Testimonials < Spree::PageSection
      # Override default padding if needed
      TOP_PADDING_DEFAULT = 60
      BOTTOM_PADDING_DEFAULT = 60

      # Define section-specific preferences
      preference :heading, :string, default: 'What Our Customers Say'
      preference :heading_size, :string, default: 'large'
      preference :heading_alignment, :string, default: 'center'
      preference :max_testimonials, :integer, default: 3
      preference :show_rating, :boolean, default: true

      # Validation for preferences
      before_validation :ensure_valid_heading_size
      before_validation :ensure_valid_alignment

      # Icon displayed in the Page Builder sidebar
      def icon_name
        'quote'
      end

      # Define default blocks that are created with this section
      def default_blocks
        @default_blocks.presence || [
          Spree::PageBlocks::Heading.new(
            text: preferred_heading,
            preferred_text_alignment: preferred_heading_alignment
          )
        ]
      end

      # Which block types can be added to this section
      def available_blocks_to_add
        [
          Spree::PageBlocks::Heading,
          Spree::PageBlocks::Text
        ]
      end

      # Enable block management in admin
      def blocks_available?
        true
      end

      # Allow reordering blocks
      def can_sort_blocks?
        true
      end

      private

      def ensure_valid_heading_size
        self.preferred_heading_size = 'medium' unless %w[small medium large].include?(preferred_heading_size)
      end

      def ensure_valid_alignment
        self.preferred_heading_alignment = 'center' unless %w[left center right].include?(preferred_heading_alignment)
      end
    end
  end
end

Step 2: Register the Section

Add your section to Spree.page_builder.page_sections in your Spree initializer:
config/initializers/spree.rb
Rails.application.config.after_initialize do
  Spree.page_builder.page_sections += [
    Spree::PageSections::Testimonials
  ]
end
Sections are filtered by their role method. By default, sections have role 'content' which makes them available in the Page Builder. Sections with role 'header' or 'footer' are layout sections.

Step 3: Create the Admin Form

Create the admin form partial for configuring the section in the Page Builder. Place it in app/views/spree/admin/page_sections/forms/:
app/views/spree/admin/page_sections/forms/_testimonials.html.erb
<div class="form-group">
  <%= f.label :preferred_heading, Spree.t(:heading) %>
  <%= f.text_field :preferred_heading,
      class: 'form-control',
      data: { action: 'auto-submit#submit' } %>
</div>

<div class="form-group">
  <%= f.label :preferred_heading_size, Spree.t(:heading_size) %>
  <%= f.select :preferred_heading_size,
      options_for_select([
        [Spree.t(:small), 'small'],
        [Spree.t(:medium), 'medium'],
        [Spree.t(:large), 'large']
      ], @page_section.preferred_heading_size),
      {},
      { class: 'custom-select', data: { action: 'auto-submit#submit' } } %>
</div>

<div class="form-group">
  <%= f.label :preferred_heading_alignment, Spree.t(:alignment) %>
  <%= f.select :preferred_heading_alignment,
      options_for_select([
        [Spree.t(:left), 'left'],
        [Spree.t(:center), 'center'],
        [Spree.t(:right), 'right']
      ], @page_section.preferred_heading_alignment),
      {},
      { class: 'custom-select', data: { action: 'auto-submit#submit' } } %>
</div>

<div class="form-group">
  <%= f.label :preferred_max_testimonials, Spree.t(:max_items) %>
  <%= f.number_field :preferred_max_testimonials,
      class: 'form-control',
      min: 1,
      max: 10,
      data: { action: 'auto-submit#submit' } %>
</div>

<div class="custom-control custom-checkbox mb-3">
  <%= f.check_box :preferred_show_rating,
      class: 'custom-control-input',
      data: { action: 'auto-submit#submit' } %>
  <%= f.label :preferred_show_rating, Spree.t(:show_rating), class: 'custom-control-label' %>
</div>

<%# Add design settings to the Design tab %>
<% content_for(:design_tab) do %>
  <hr />
<% end %>
The data: { action: 'auto-submit#submit' } attribute enables live preview in the Page Builder - changes are saved automatically as the user types.

Step 4: Create the Storefront View

Create the storefront partial that renders the section. Place it in your theme’s views directory:
app/views/themes/default/spree/page_sections/_testimonials.html.erb
<% cache_unless page_builder_enabled?, spree_storefront_base_cache_scope.call(section) do %>
  <div style="<%= section_styles(section) %>" class="testimonials-section">
    <div class="page-container">
      <%# Heading %>
      <% if section.preferred_heading.present? %>
        <%
          heading_class = case section.preferred_heading_size
                          when 'small' then 'text-lg'
                          when 'medium' then 'text-xl lg:text-2xl'
                          when 'large' then 'text-2xl lg:text-3xl'
                          end
        %>
        <h2 class="<%= heading_class %> font-medium mb-8 text-<%= section.preferred_heading_alignment %>">
          <%= section.preferred_heading %>
        </h2>
      <% end %>

      <%# Render blocks %>
      <% section.blocks.includes(:rich_text_text).each do |block| %>
        <% case block.type %>
        <% when 'Spree::PageBlocks::Heading' %>
          <h3 class="text-xl font-medium" <%= block_attributes(block) %>>
            <%= block.text %>
          </h3>
        <% when 'Spree::PageBlocks::Text' %>
          <div class="prose" <%= block_attributes(block) %>>
            <%= block.text %>
          </div>
        <% end %>
      <% end %>

      <%# Your custom testimonials content %>
      <div class="grid grid-cols-1 md:grid-cols-<%= section.preferred_max_testimonials %> gap-6">
        <%# Add your testimonials rendering logic here %>
      </div>
    </div>
  </div>
<% end %>

Section Roles

Sections have different roles that determine where they appear:
RoleDescriptionExample
contentAvailable in Page Builder, can be added to any pageRich Text, Image Banner
systemCore page functionality, usually not removableProduct Details, Cart
headerHeader layout sectionsHeader, Announcement Bar
footerFooter layout sectionsFooter, Newsletter
To set a section’s role, override the self.role class method:
def self.role
  'content' # default
end

Section with Image Upload

If your section needs an image, use the built-in asset attachment:
app/models/spree/page_sections/hero_banner.rb
module Spree
  module PageSections
    class HeroBanner < Spree::PageSection
      include Spree::HasImageAltText

      preference :image_alt, :string

      def icon_name
        'photo'
      end
    end
  end
end
Admin form with image upload:
app/views/spree/admin/page_sections/forms/_hero_banner.html.erb
<%= render 'spree/admin/shared/page_section_image', f: f %>

<div class="form-group">
  <%= f.label :preferred_image_alt, Spree.t(:alt_text) %>
  <%= f.text_field :preferred_image_alt,
      class: 'form-control',
      data: { action: 'auto-submit#submit' } %>
</div>
Display in storefront:
<% if section.asset.attached? %>
  <%= spree_image_tag section.asset,
      width: 1200,
      height: 600,
      alt: section.image_alt,
      class: 'w-full object-cover' %>
<% end %>
To add clickable links to your section, include the Spree::HasPageLinks concern (included by default) and define links:
module Spree
  module PageSections
    class PromoBanner < Spree::PageSection
      has_one :link, ->(ps) { ps.links },
              class_name: 'Spree::PageLink',
              as: :parent,
              dependent: :destroy,
              inverse_of: :parent
      accepts_nested_attributes_for :link

      def default_links
        @default_links.presence || [
          Spree::PageLink.new(label: Spree.t(:shop_now))
        ]
      end
    end
  end
end

Lazy Loading Sections

For sections that load external data (products, taxons), implement lazy loading to improve page performance:
def lazy?
  !Rails.env.test?
end

def lazy_path(variables)
  url_options = variables[:url_options] || {}
  Spree::Core::Engine.routes.url_helpers.page_section_path(self, **url_options)
end

Helper Methods

These helper methods are available in storefront section views:
HelperDescription
section_styles(section)Returns inline CSS for section padding, colors, borders
block_attributes(block)Returns data attributes for Page Builder editing
page_builder_enabled?Returns true when in Page Builder preview mode
spree_storefront_base_cache_scopeCache key scope for the section
section_heading_styles(section)Returns inline CSS for heading text color
page_builder_link_to(link, **options)Renders a link with Page Builder support

Adding Translations

Add translations for your section in your locale files:
config/locales/en.yml
en:
  spree:
    page_sections:
      testimonials:
        heading_default: "What Our Customers Say"
        text_default: "Read reviews from our happy customers"

Complete Example

Here’s a complete example putting it all together - a “Brand Story” section:
1

Create the model

app/models/spree/page_sections/brand_story.rb
module Spree
  module PageSections
    class BrandStory < Spree::PageSection
      include Spree::HasImageAltText

      TOP_PADDING_DEFAULT = 80
      BOTTOM_PADDING_DEFAULT = 80

      preference :image_position, :string, default: 'left'
      preference :image_alt, :string

      def icon_name
        'building-store'
      end

      def default_blocks
        [
          Spree::PageBlocks::Heading.new(text: 'Our Story'),
          Spree::PageBlocks::Text.new(text: 'Share your brand story here...')
        ]
      end

      def available_blocks_to_add
        [Spree::PageBlocks::Heading, Spree::PageBlocks::Text, Spree::PageBlocks::Buttons]
      end

      def blocks_available?
        true
      end

      def can_sort_blocks?
        true
      end
    end
  end
end
2

Register the section

config/initializers/spree.rb
Rails.application.config.after_initialize do
  Spree.page_builder.page_sections += [Spree::PageSections::BrandStory]
end
3

Create admin form

app/views/spree/admin/page_sections/forms/_brand_story.html.erb
<%= render 'spree/admin/shared/page_section_image', f: f %>

<div class="form-group">
  <%= f.label :preferred_image_alt, Spree.t(:alt_text) %>
  <%= f.text_field :preferred_image_alt,
      class: 'form-control',
      data: { action: 'auto-submit#submit' } %>
</div>

<% content_for(:design_tab) do %>
  <div class="form-group">
    <%= f.label :preferred_image_position, Spree.t(:image_position) %>
    <%= f.select :preferred_image_position,
        options_for_select([['Left', 'left'], ['Right', 'right']], @page_section.preferred_image_position),
        {},
        { class: 'custom-select', data: { action: 'auto-submit#submit' } } %>
  </div>
  <hr />
<% end %>
4

Create storefront view

app/views/themes/default/spree/page_sections/_brand_story.html.erb
<% cache_unless page_builder_enabled?, spree_storefront_base_cache_scope.call(section) do %>
  <div style="<%= section_styles(section) %>" class="brand-story">
    <div class="page-container">
      <div class="grid grid-cols-1 lg:grid-cols-2 gap-8 items-center">
        <% image_order = section.preferred_image_position == 'right' ? 'lg:order-2' : '' %>

        <div class="<%= image_order %>">
          <% if section.asset.attached? %>
            <%= spree_image_tag section.asset,
                width: 600,
                height: 400,
                alt: section.image_alt,
                class: 'w-full rounded-lg' %>
          <% end %>
        </div>

        <div>
          <% section.blocks.each do |block| %>
            <% case block.type %>
            <% when 'Spree::PageBlocks::Heading' %>
              <h2 class="text-2xl lg:text-3xl font-medium mb-4" <%= block_attributes(block) %>>
                <%= block.text %>
              </h2>
            <% when 'Spree::PageBlocks::Text' %>
              <div class="prose" <%= block_attributes(block) %>>
                <%= block.text %>
              </div>
            <% when 'Spree::PageBlocks::Buttons' %>
              <div class="mt-6" <%= block_attributes(block) %>>
                <% if block.link %>
                  <%= page_builder_link_to block.link,
                      class: 'btn-primary',
                      target: (block.link.open_in_new_tab ? '_blank' : nil) %>
                <% end %>
              </div>
            <% end %>
          <% end %>
        </div>
      </div>
    </div>
  </div>
<% end %>
